Basic knowledge Sheet metal working and metal working - bending, punching & Co.

What is sheet metal working? Nosotros provide basic information likewise as relevant definitions of terms and briefly introduce manufacturing processes, materials, tools and machines.

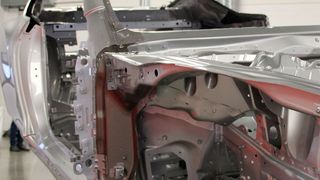

Car construction is a textbook instance of sail metal working.

(Source: Audi)

Sheet metal is not a specific material. Rather, the term is used for metals that have been formed into shape. Equally a rule, sheet metallic has a rectangular shape. Information technology is also characteristic that the thickness of a sheet is considerably beneath that of its length and width.

In addition to steel, numerous other metals such equally copper, aluminum and gold likewise as brass alloys can be processed into sheet metal. In order to be candy into sail metal, however, the materials used should accept specific characteristics, i.e. a certain toughness and rigidity, and of course be ductile, i.eastward. formable. These requirements issue in restrictions with regard to the materials that tin be used. Thus, it is non possible to process very brittle or extremely stiff materials into sheet metallic.

Sail metal working: Lasertube family from BLM: the LT7 cuts tubes and profiles.

(Source: RAS)

According to this, sheet metal is a semi-finished product that tin can exist produced over a large area, whereby sheets are more often than not low-cal, sparse, stable, rubberband and flat. Due to these specifics, they are suitable for all types of cladding and roofing. In addition, canvass metal can be deformed in many ways, i.e. it tin can be welded, bend, punched or cut. A wide variety of shapes can exist made from canvas metallic, which is why information technology is used as the starting material for a wide variety of products.

What is sheet metal working?

The term "sheet metallic processing" covers a large number of manufacturing processes. Basically, the word canvass metal working refers to the manufacture of products, components and parts made of metal. In improver to welding, cutting and angle, the processes of canvass metal processing also include punching, forming, rolling and joining. Sheet metallic forming is usually likewise included in sheet metal processing, with the following subcategories:

• Welding

• Gluing

• Bending

• Piercing

• Drawing

• Steel construction

• Layer forming

• Heating coil

• Cutting

• Slitting

• Bending punching

• Laser cut

• Laser processing

Within the framework of sheet metal processing, both soft and resistant sheets can exist produced, whereby the different characteristics are achieved by different alloys. For case, there are numerous elements that can be added to steel in the liquid state during metalworking and that make up one's mind the material properties of the sheet metal produced. In improver to silicon, nickel and chromium, these elements also include titanium, copper, niobium and molybdenum.

Car construction is a textbook example of sheet metal working.

(Source: Audi)

In metalworking, sheets tin be made from unlike types of steel besides as aluminum and other metals - these are over again available in different alloys. In order to categorize the different sheets, at that place are standards subsuming the materials according to their properties. In improver, material numbers were introduced to ensure a clear structuring of the sheets.

A cursory history of sail metal working

Anyone looking for the oldest form of metalworking will inevitably come across forging. In forging, metals are machined by means of force, for example with the aid of a hammer. Nowadays, this form of metalworking is very rarely found in the industrial sector and is rather used in the artistic sector. The first metallic sheets were made of soft materials such every bit silver and gold. In the course of metalworking, the blacksmiths were able to shape these materials into sparse sheets, from which jewelery and coins were later fabricated for example.

A fiddling scrap later, the materials iron and copper also found their way into sheet metal processing. Especially in the High and Late Center Ages fe sheets were used to make knight'south armor. At that fourth dimension, rolling was yet unknown in metalworking. Instead, the sheet metallic was candy with hammers or hammer blows until the materials had the desired thickness. Of course, sheet metal and silverish and gilded were valuable materials - solely because of the value of the raw materials. Yet, iron sheets likewise became an expensive commodity, considering the canvass metal processing was very complex and fourth dimension-consuming. The raw materials had to be formed into sheet metallic by pure manual work and with the help of simple tools. Sheet metal processing therefore required a high degree of exercise and experience.

When large hammers driven by water power were showtime used, this led to simplifications in metalworking. Although the hammers shortened the sail metal working time due to their enormous dimensions and weight, the production fourth dimension could nonetheless take several days, depending on the size of the sail metal. The commencement metalworking machines were finally adult during the industrial revolution. These were used to whorl metal ingots to produce canvass metal. This not only shortened the product time in metalworking enormously, but likewise improved the quality of the sheets in terms of flatness and thickness. As a effect, sheet metal not only became cheaper, merely was besides used to manufacture a large number of other products.

The two most of import merchandise fairs in Deutschland are the biennial Blechexpo in Stuttgart and the Euroblech in Hanover.

Meanwhile, sheet metal processing and metal working have also arrived in modern times and offer a multi-faceted selection of materials, fabric thicknesses and formats. It should besides exist noted that the corresponding canvas metal properties can be adapted to the planned location of employ by metalworking.

Manufacturing procedure of sheet metal processing

In the post-obit, the different manufacturing processes of metal processing and canvas metal working are presented.

1. Forming - rolling, angle, forging, drawing etcetera

If one follows DIN 8580, the manufacturing process of forming constitutes a major group in metalworking. With this manufacturing process, the cohesion of the material is maintained. However, in the class of sheet metallic processing, the already existing shape of a workpiece is modified past plastic deformation. An example of forming in metal processing is the rolling of steel.

Servo-electric printing brake with multi-spindle drive from Coast One: Each of the spindles is driven by its ain servo motor. The parallelism between the upper and lower tool is thus gear up and adjusted in a targeted, precise and fast manner.

(Source: Coast One)

In general, plastic deformation occurs in the forming process when the atoms, which are located on the so-called sliding planes, begin to shift every bit a result of external forces. The modifications of the technological and physical properties of the material occurring during canvass metallic processing are subsumed under the term "hardening".

In general, the resistance to deformation of metals at room temperature is college than at a corresponding forming temperature. Plastic forming of steel, for example, can be achieved at high temperatures with far less work and endeavour than at room temperature. In addition, loftier temperatures during canvass metal processing contribute to the immediate recrystallization of the microstructure and exercise non lead to hardening.

Cold and hot forming

In sheet metal forming, a distinction is made between hot and cold forming. Hot forming is a sheet metal forming process in which greater formability is achieved at high rolling temperatures, whereby the occurring forces are lower than in cold forming. The disadvantages of hot forming, however, are its poorer dimensional tolerances and scored surfaces.

In contrast, much more precise dimensional tolerances tin be achieved in the cold forming procedure within the framework of metal processing. In this method of sail metal working, the material is not heated, which increases its strength. In dissimilarity to common cold forming, the quality of the surfaces is also of high quality. A disadvantage, still, is that no welding suitability is ensured subsequently cold forming. The workpiece can just be welded when it has been soft annealed in the grade of canvas metal processing, thus minimizing stress.

As an association for companies in the sheet metal and hybrid construction processing industries and their inquiry institutions, the European Enquiry Association for Sheet Metal Processing initiates and finances industrial research projects for and in cooperation with technology leaders. The EFB provides support, identifies engineering science trends and starts innovative projects. The focus is on the rapid implementation of results and securing jobs in the interest of members, in item SMEs.

2. Separation - cutting, punching, etcetera

Within the framework of the separating manufacturing procedure, which according to DIN 8580 also forms a chief grouping amidst the manufacturing processes, the shape of a solid body, i.due east. workpiece, is inverse by locally eliminating, i.eastward. reducing, the cohesion. In this class of sheet metal processing, the final shape of the workpiece is therefore contained in its original form. Separation is a technique of metalworking, which also includes the dismantling of blended bodies. The main grouping "Separation" can exist subdivided into six subgroups. In that location are the following subgroups:

• Splitting

• Ablation

• Disassembling

• Cleaning

• Machining with geometrically determined cutting edges

• Machining with geometrically indeterminate cutting edges

Cutting processes in sheet metallic working include sawing, milling, filing, drilling, turning, lapping, thermal cutting, broaching and honing. Wedge cutting and shear cut, on the other hand, are separating processes. During metalworking, the actual cutting process takes place at the point of action, i.east. at the point where the tool or machine acts on the workpiece. With regard to the cutting process in sheet metallic working, it should be noted that relative movements, i.e. cutting, feed and infeed movements, are necessary and are carried out by one of the agile partners. The power or free energy supplied from outside to carry out the separation process is converted into friction, deformation and separation ability at the indicate of activity. They are dissipated in the course of heat via the active pair.

3. Joining - welding, soldering, etcetera

Joining, too, is one of the main production groups in sheet metal processing manufacturing applied science defined past DIN 8580. Within the framework of this metalworking process, two or more solid bodies are permanently joined together. Information technology is of import that the bodies take on a specific geometric shape through sheet metal processing. Partly this is done by using a "formless fabric", i.e. the shape of the material is not defined. For example, adhesive counts every bit a formless substance.

Welding processes for manufacture and merchandise: EWM has various models in its portfolio that can be used to reduce both energy requirements and welding costs.

(Source: EWM)

Joining also has further process groups that belong to metalworking. These are for example soldering, welding, gluing too as screwing, joining past shearing and upsetting or riveting. In order to establish a connexion between the workpieces, farther components such equally pins, screws, wedges or rivets are sometimes necessary. In addition, specific tools such as soldering irons, bear upon wrenches and then on are used in this production technology.

4. Surface treatment

In metalworking, the term "surface applied science" covers all technologies that enable the surface properties of workpieces to be inverse. Information technology is of import in this respect that the primary function of a workpiece in metalworking can exist supplemented by surface handling with boosted functions. The principle of functional separation between the surface and the book of a tool or component is the primary goal of this sheet metal processing manufacturing technique.

The book of a workpiece has a specific role and certain characteristics such every bit machinability, strength, weight and so on. If a surface technology process is used in canvass metal processing, the workpiece or tool tin be optimized in such a way that it fulfills a specific requirement profile and has a wide range of functions. These may include the following:

• Barrier function, thermal insulation, diffusion, permeation, corrosion resistance)

• Mechanical protection (friction, wearable)

• Optical part (decoration, absorption, reflection)

• Functional integration (functional press, press process)

• Electrical function (electrical insulation, conductivity)

Different methods can be used to bear out a surface treatment in sheet metal processing. The surface treatments in metalworking are therefore allocated to unlike process classes, which are the post-obit:

• Surface removal (electropolishing, burnishing)

• Surface coating (chrome plating, powder blanket, painting)

• Mechanical surface handling (shot peening, polishing, grinding)

• Chemical surface treatment (pickling, degreasing, cleaning)

Machines & tools for sheet metal working

In the course of sheet metal processing, dissimilar tools and machines tin be used, whereby a distinction is fabricated between manus tools and power tools. Hand tools include files, fe saws, cartoon pins, bullheaded riveting pliers, pliers, hammers, shell irons, file pistons, ejector pistols and and then on. Power tools, on the other hand, include drills, percussion drills, orbital, chugalug and random orbit grinders, soldering irons, lasers and so on.
